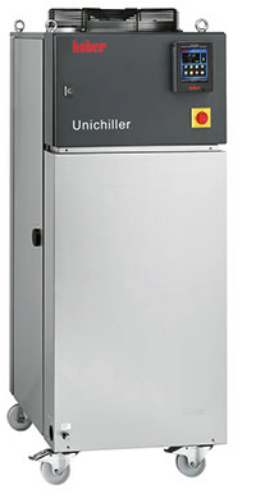

德国 Huber 配备 Pilot ONE® 控制器 直立式设计 风冷型 Unichillers® "Tower"
功能强大的塔式设计，占用空间小，采用风冷制冷，配备Pilot ONE控制器，具有众多专业功能。如果选择配备加热功能的话，循环制冷器就能变成功能强大的加热恒温器。选配项“防冻保护”支持用水操作。
| 型号 | 温度范围(°C) | 泵流量和压力 类型 (l/min) (bar) | 制冷功率(kW)在 (°C) 15 0 -10 -20 | 外形尺寸 W x D x H (mm) | 订货号 | G |
| Unichiller 017T | -10...40 | B 25 3,0 | 1,7 0,9 0,4 – | 450 x 510 x 1230 | 3013.0001.01 | 3 |
| Unichiller 020T | -20...40 | B 25 3,0 | 2,0 2,0 1,5 0,8 | 450 x 510 x 1230 | 3013.0002.01 | 3 |
| Unichiller 025T | -10...40 | B 25 3,0 | 2,5 1,2 0,6 – | 450 x 510 x 1230 | 3013.0003.01 | 3 |
| Unichiller 040T | -10...40 | B 26 3,0 | 4,0 2,5 1,5 – | 500 x 552 x 1451 | 3014.0001.01 | 3 |
| Unichiller 045T | -20...40 | B 26 3,0 | 4,5 4,5 2,9 1,5 | 500 x 552 x 1451 | 3014.0002.01 | 3 |
| Unichiller 055T | -10...40 | C3 57 5,6 | 5,5 3,0 1,3 – | 600 x 692 x 1613 | 3015.0042.01 | 35 |
| Unichiller 060T | -20...40 | C3 80 5,6 | 6,0 6,0 3,9 2,0 | 600 x 692 x 1613 | 3015.0044.01 | 35 |
| Unichiller 080T | -10...40 | C3 85 5,6 | 8,0 4,8 2,5 – | 600 x 790 x 1614 | 3016.0001.01 | 35 |
| Unichiller 100T | -20...40 | C3 96 5,6 | 10,0 10,0 6,5 2,5 | 600 x 790 x 1614 | 3017.0001.01 | 4 |
| Unichiller 110T | -10...40 | C3 90 5,6 | 11,0 6,0 2,7 – | 600 x 790 x 1614 | 3017.0002.01 | 4 |
| Unichiller 130T* | -10...40 | C3 90 5,6 | 13,0 7,0 4,5 – | 905 x 1582 x 1837 | 3018.0012.01 | 4 |
| Unichiller 150T* | -20...40 | D3 220 4,7 | 15,0 15,0 9,7 3,7 | 905 x 1582 x 1837 | 3019.0020.01 | 4 |
| Unichiller 160T* | -10...40 | C3 96 5,6 | 16,0 8,8 4,0 – | 905 x 1582 x 1837 | 3018.0013.01 | 4 |
| Unichiller 200T* | -10...40 | D3 220 4,7 | 20,0 11,0 5,0 – | 905 x 1582 x 1837 | 3019.0026.01 | 4 |
| Unichiller 210T* | -20...40 | D3 220 4,7 | 21,0 21,0 13,6 5,2 | 904 x 2172 x 1870 | 3020.0001.01 | 4 |
| Unichiller 250T* | -10...40 | D3 220 4,7 | 25,0 14,0 6,2 – | 904 x 2172 x 1870 | 3020.0002.01 | 5 |
| Unichiller 260T* | -20...40 | D3 220 4,7 | 26,0 26,0 13,6 5,2 | 904 x 2172 x 1870 | 3020.0003.01 | 5 |
| Unichiller 300T* | -10...40 | D3 220 4,7 | 30,0 16,5 7,5 – | 904 x 2172 x 1870 | 3020.0004.01 | 5 |
| Unichiller 400T* | -10...40 | D3 220 4,6 | 40,0 22,0 10,0 – | 904 x 2172 x 1870 | 3021.0001.01 | 5 |
